Shimadzu DTG-60H Thermogravimetric Analysis System

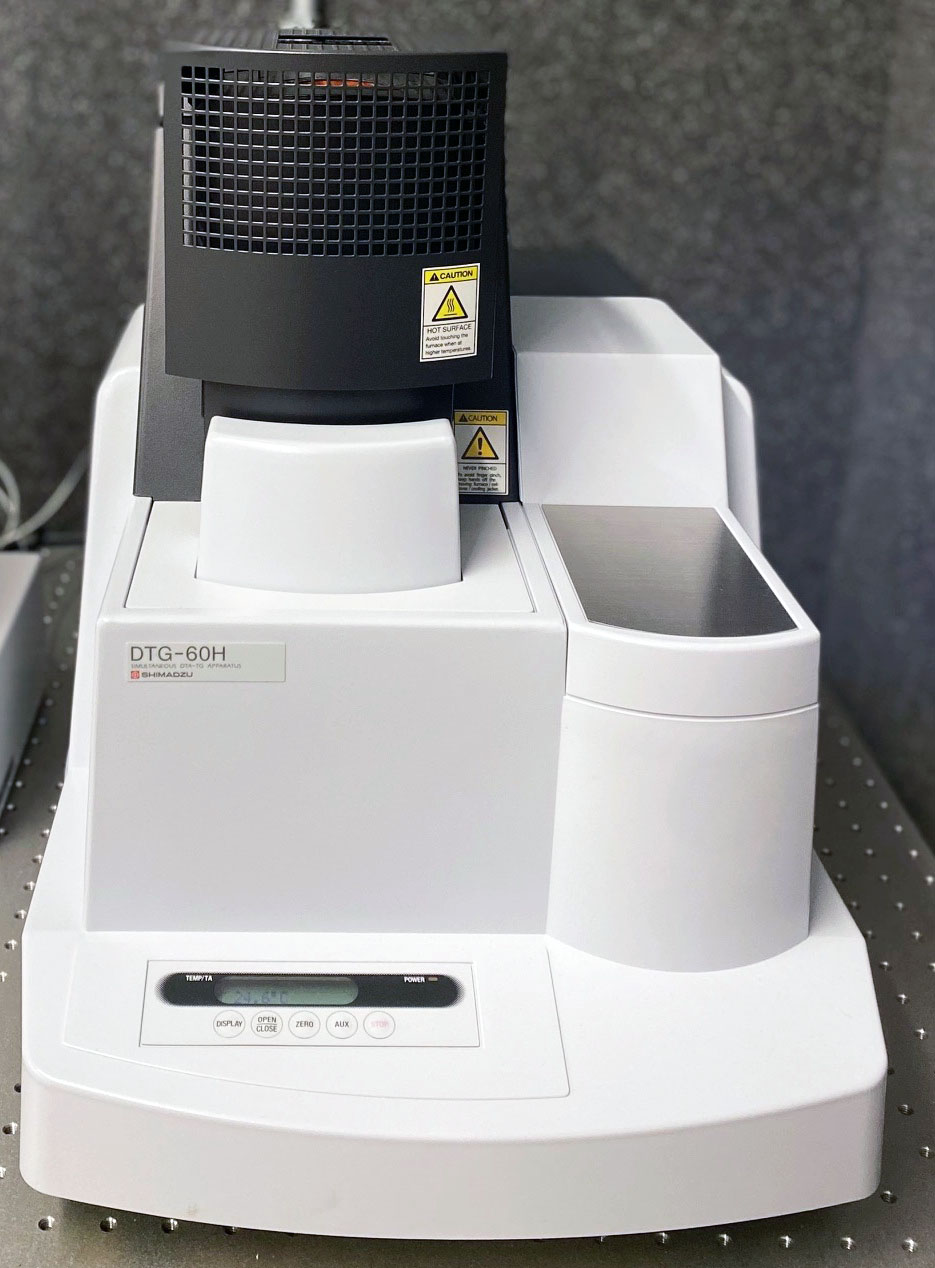

Shimadzu DTG-60H thermogravimetric analyzer with high-temperature furnace and warning labels.
Gray-Little Hall, Room B105D

Specifications

  • Balance principle: Parallel guide differential top pan type
  • Temperature range: room temperature to 1500°C
  • Heating rate: 0.1 to 99.9 °C/min
  • Measurement range: TG (±500mg), DTA (±1000µV)
  • Weight readability: 0.1µg
  • Sample quantity: 1g max. in gross weight
  • Atmosphere: Air and inert gas

Features

  • Thermogravimetric analyzer (TGA + DTA)
  • Designed for high-temperature decomposition studies
  • High-sensitivity Platinum detectors
Two thermogravimetric analyzer sample holder rods with circular pan supports

Sample Mass

10 - 20mg.

Available Pans

  1. Aluminum pan (with lid): Yellow crimp attachment available. Max Temp 500 °C.
  2. Platinum pan: Max Temp 1500 °C (limited by instrument).
  3. Alumina pan: Max Temp 1500 °C (limited by instrument).

Note: Platinum and Alumina pans cannot be crimped.

Calibration Standards

  • Calcium oxalate (weight loss verification)
  • Indium and zinc (temperature)

Workstation Specifications

  • LabSolutions TA Software
  • 16GB RAM
  • Windows 11 Enterprise
