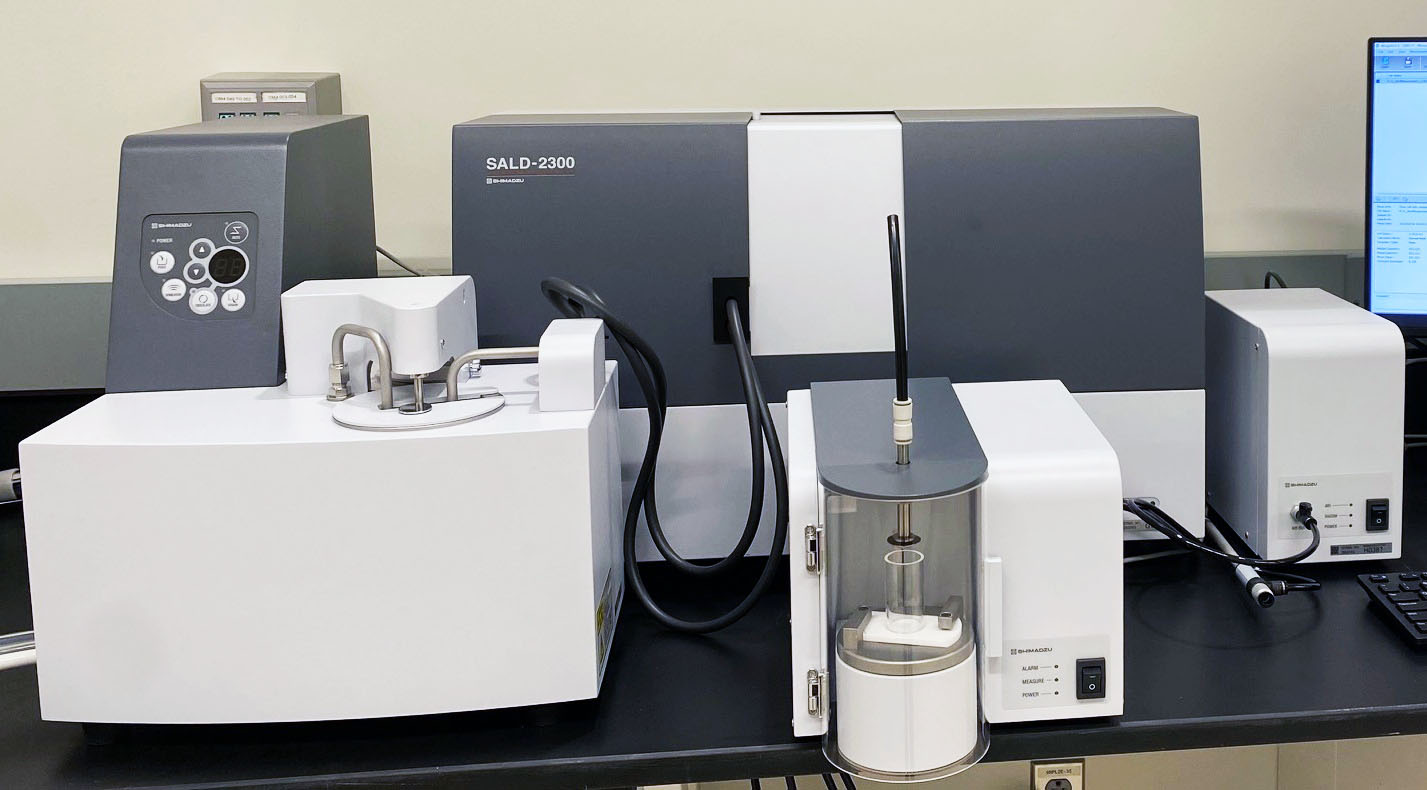

Shimadzu SALD-2300 Laser Diffraction Particle Size Analyzer
Gray-Little Hall, Room B105
SALD-2300 Measurement Unit Specifications
- Light source: red semiconductor laser (wavelength 680nm)
- Light detector: Detector elements for UV semiconductor laser, Total 84 elements (78 forward, 1 side, 5 back)
- System compliance: Class 1 laser product, CE complaint
- Operating environment: Temperature: 10 to 30 °C, Humidity: 20 to 80 % (no condensation)
Wet Measurement: SALD-MS23 Sampler Specifications
- Measurement range: 17 nm to 2500 µm
- Sample amount (suspension): 3 level variable (100/200/300 ml)
- Concentration range: 0.1 ppm to several 10 ppm
- Sonicator: Frequency about 32 kHz, output about 40 W
- Liquid pump: radial pump, maximum ow rate 2000 cm3/min
- Liquid pump material: Stainless (SUS 304, SUS 316), Tetra fluoroethylene (PTFE), Per fluoroelastmor (FEP) or Kalrez, Thermo on Pascal (inside)
- Liquid supply pump: Diaphragm pump, maximum ow rate 750 cm3/min
- Liquid supply pump material: Tetrafluoroethylene, polyvinyl dene fluoride
- Flow cell: Quartz crystal
Dry Measurement: SALD-DS5S Cyclone Injection Type Specifications
- Measurement range: 0.3 to 2500 µm
- Sample amount (dry powder): 1ml to 19 ml
- Concentration range: 0.1 ppm to several 10 ppm
- Maximum primary pressure: Approx. 0.8 MPa
- Secondary pressure: 0.05 to 0.5 MPa
- Filtration rating: Removing particles of 5 μm or larger
- Connection to air source: tube of 6mm outside diameter
Workstation Specifications
- WingSALD II Software
- Inter® Core™ Ultra 7 265
- 16 GB RAM
- Windows 11 Enterprise
