Shimadzu X-Seeker 8000 Benchtop X-ray CT System

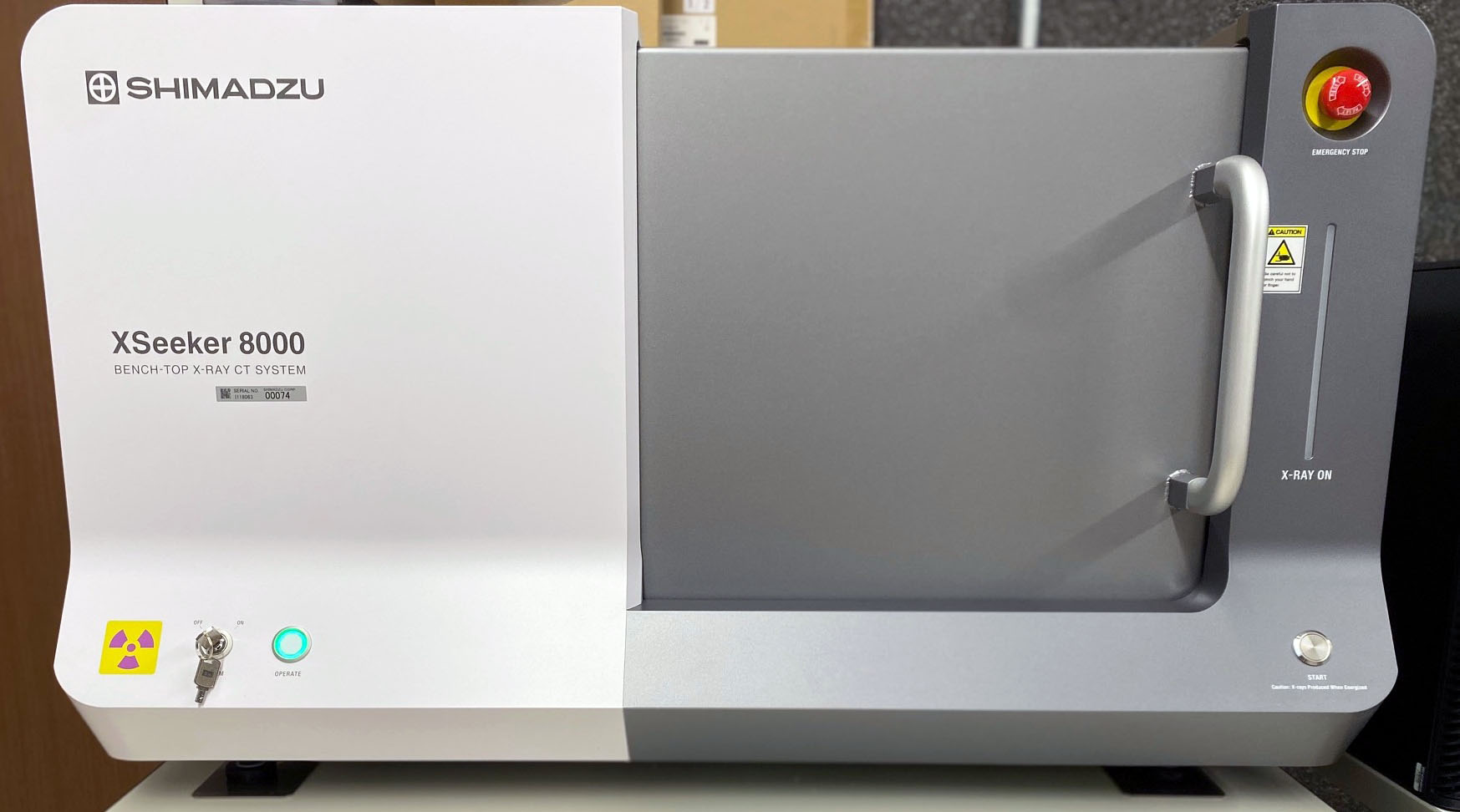

Shimadzu XSeeker 8000 bench-top X-ray CT system with a gray front access door and emergency stop button.
Gray-Little Hall, Room B105D

Features

  • Small size for space and energy savings
  • High-output X-ray generator for improved analysis
  • Intuitive design features for easy operation
  • Advanced flat panel detector to display fine details
  • Rigorous safety mechanisms to protect users

Specifications

X-Ray Generator Output160 kV 1.2 mA
X-Ray Detector

Flat panel detector

  • 49.5 microns pixels size
  • 114 x 64 mm active area size
Max. Detector Input ResolutionApprox. 5.6 million pixels
Max. Sample Size/Weightφ11.8" × H 12.6", 22 lbs (Including sample setting jig)
Max. CT-Scan Region
  • SRD = 18.7": φ3.34" × H 2.8"
  • SRD = 21.7": φ3.9" × H 3.2"
Max. System Resolution Capability100 µm
CT Data Acquisition
  • Fast scan: 40 fps; 512 x 152 pixels; 480 projections; 12 sec acquisition time
  • Slow scan: 16 fps; 1024 x 1024 pixels; 2400 projections; 5 min acquisition time
Operating Environment ConditionsAmbient temperature: 10 to 30 °C; Ambient humidity: RH of 45 to 80 % max. (No condensation)
External Leakage Dose1 μSv/h or less.
Minimum Focal Spot Size0.003"
Rotary stage
  • 360 degrees
  • 10 kg max weight

Workstation Specifications

  • XSeeker Software
    • Inter® Core™ i7-12700
    • 32GB RAM
    • Windows 10
  • VGStudio Max Software (version 2026) for voxel analysis and visualization
    • Intel® Core™ Ultra 7 265K
    • 64GB RAM
    • Windows 11 Enterprise
