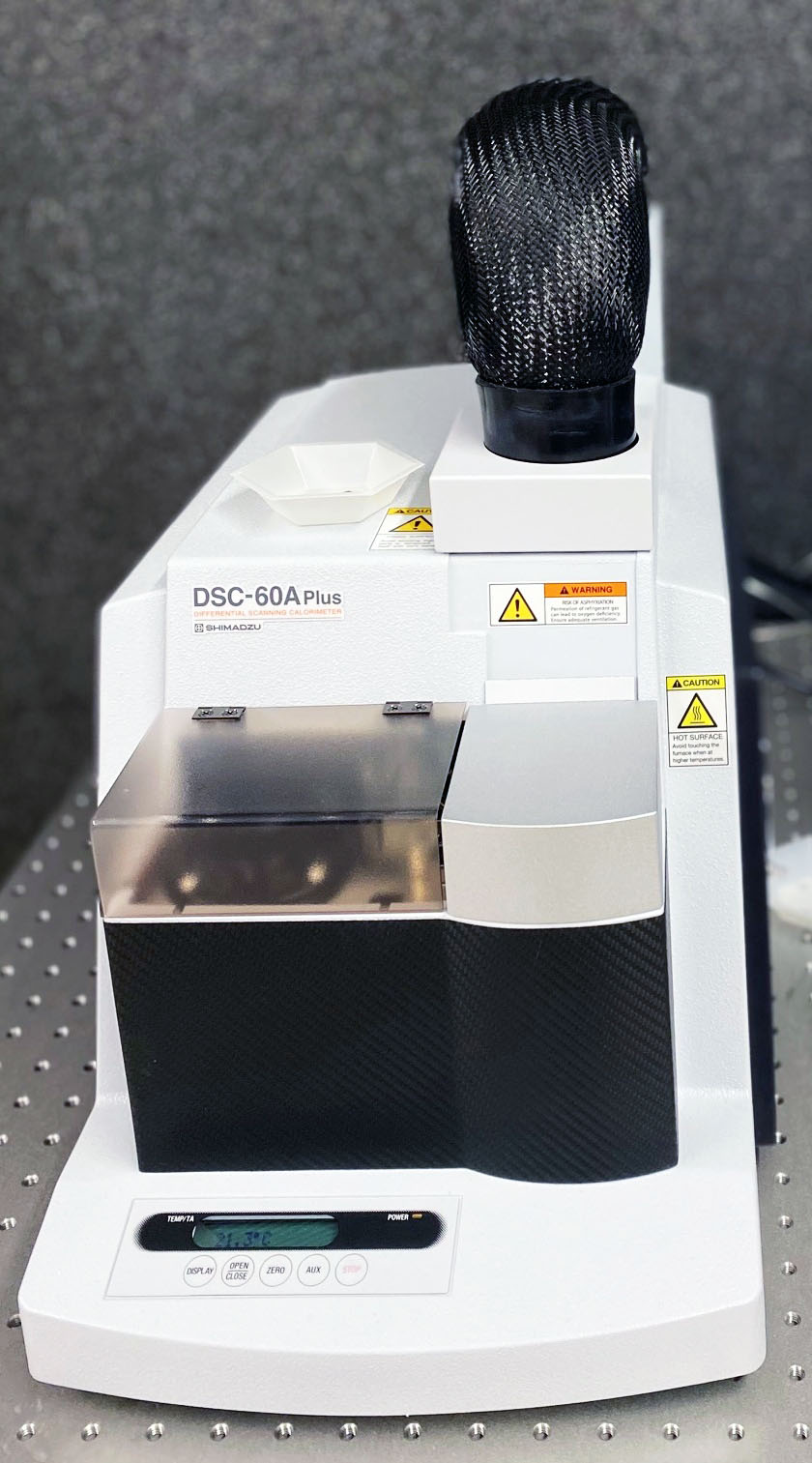

Shimadzu Differential Scanning Calorimeter DSC-60A Plus

Specifications

• Measurement principle: Heat-flux type
• Temperature range: -50 to 500 °C (IP-100 cooler with TAC 60-I attachment)
• Heating rate: 0.1 to 99.9 °C/min
• Calorimetric range: ±150 mW
• Noise level: Less than 0.5 µW (RMS, when held at 150 °C)
• Atmosphere: Nitrogen, inert gas, dry air gas flow
• Autosampler: 24 samples/tray

Sample mass: 5 -10 mg.

Available Pans

1. Aluminum pan (with lid): Yellow crimp attachment available. Max Temp 500 °C.
2. Platinum pan: Max Temp 500 °C (limited by instrument).
3. Alumina pan: Max Temp 500 °C (limited by instrument).
4. Aluminum hermetic pan (with lid): Sample - liquid. White crimp attachment. Max Temp 250 °C.

Note: Platinum and Alumina pans cannot be crimped.

Accessories

1. Sample Sealing Crimp Press SSCP-1



2. Electric Auto-cooling Attachment TAC-60i

   • Electric cooling that does not require refrigerant
   • Enables DSC measurement over the temperature range of -50 to 500 °C



Calibration Standards

• Indium (low-temperature calibration)
• Zinc (high-temperature calibration)

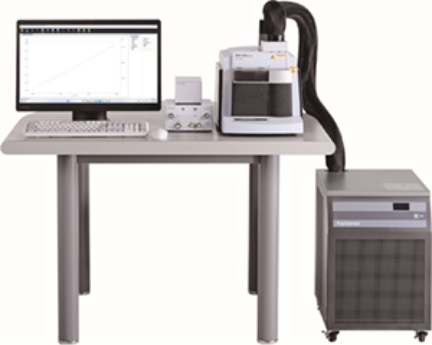

Workstation Specifications

• LabSolutions TA Software
• Intel® Core™ Ultra 7 265K
• 16 GB RAM
• Windows 11 Enterprise
